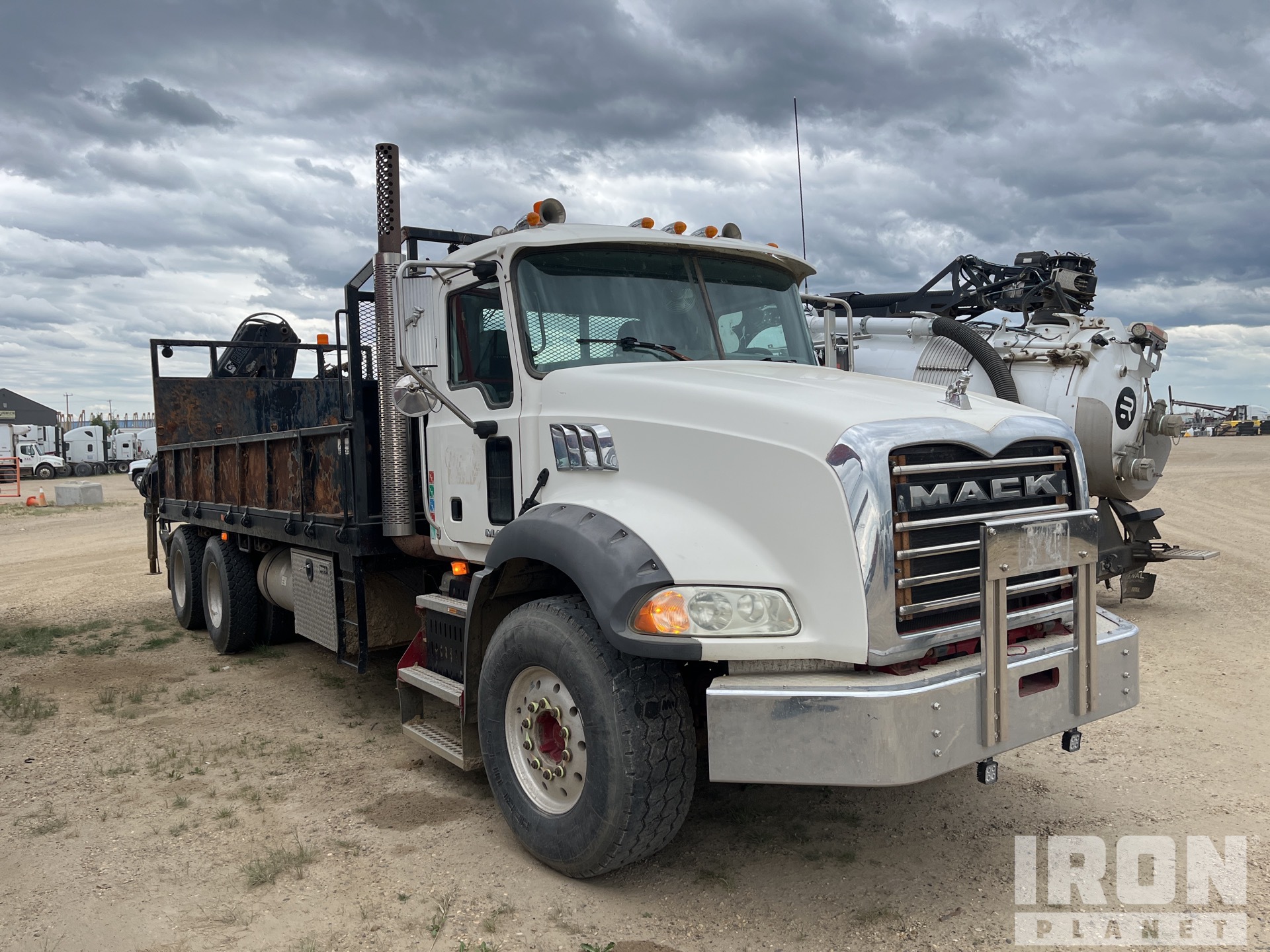

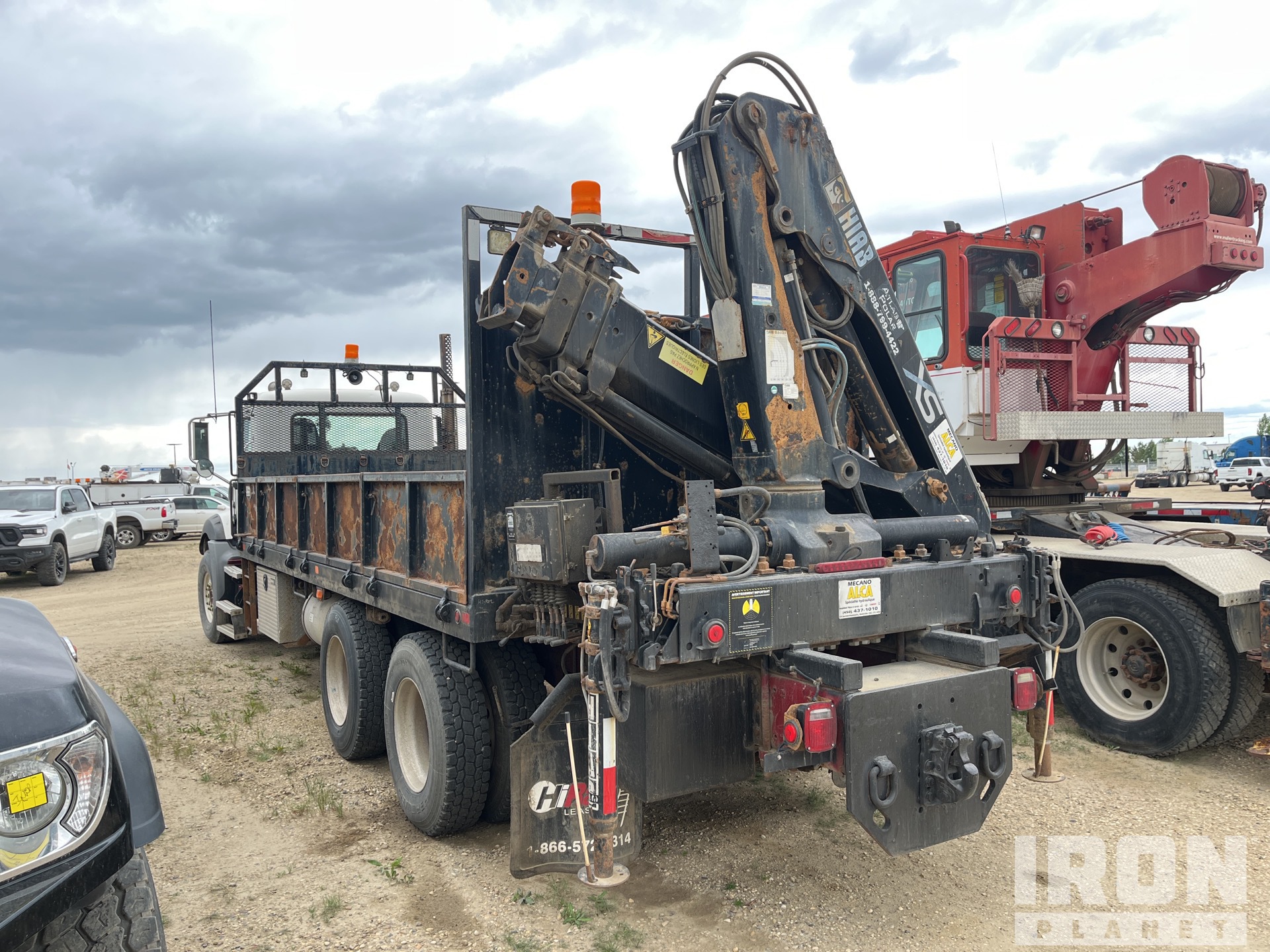

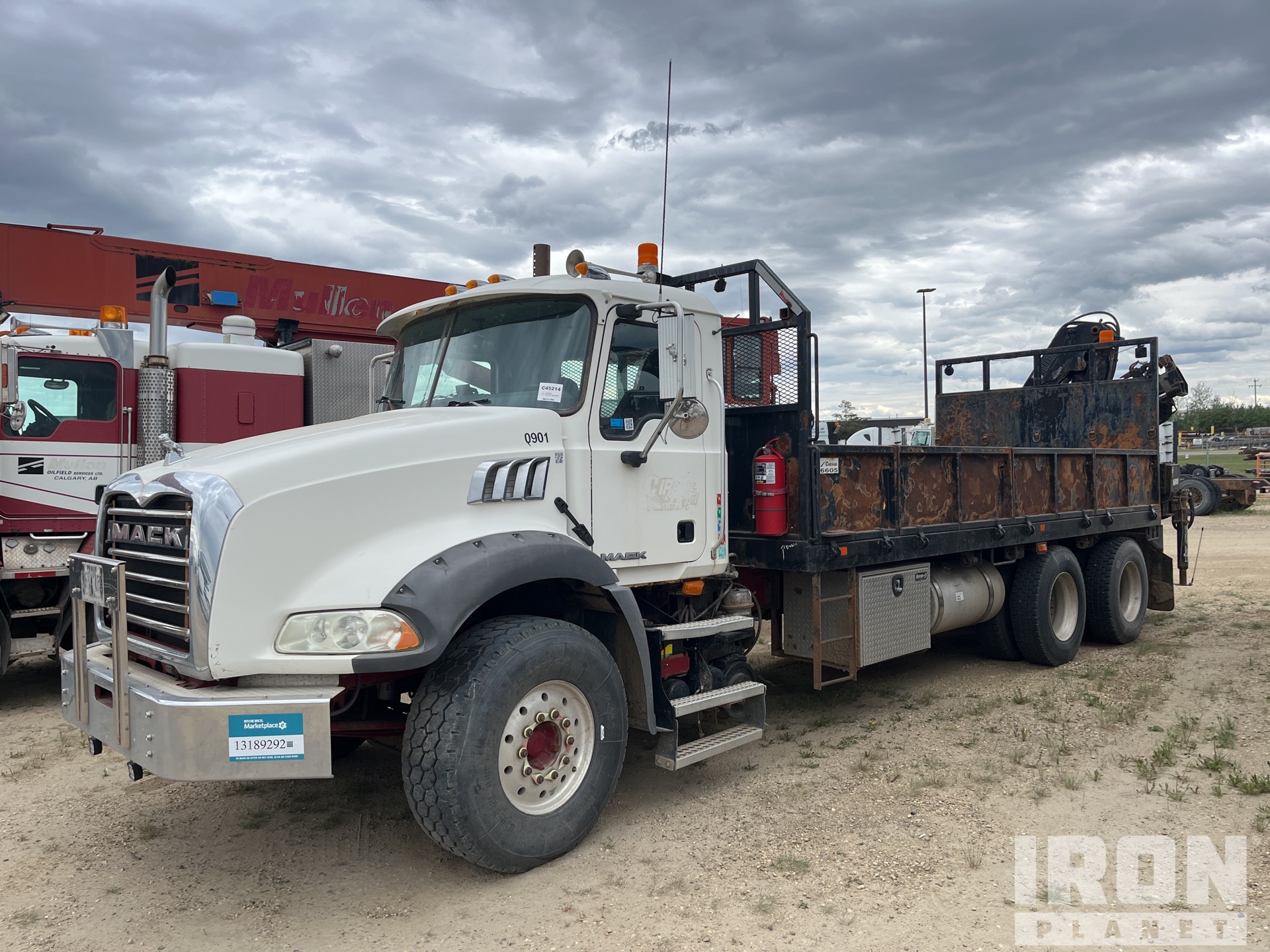

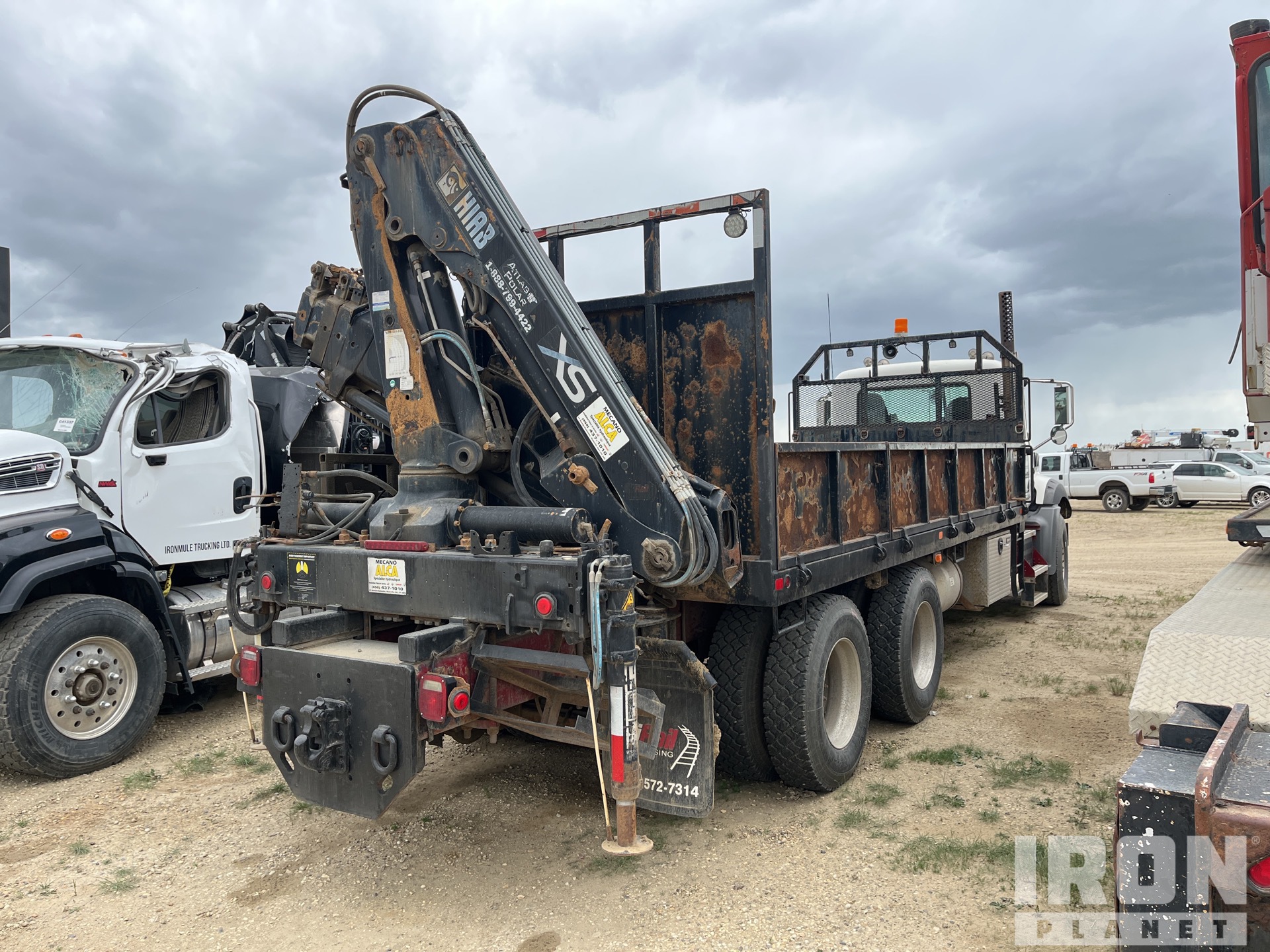

2007 Hiab 166B 4900 kg Knuckle Boom on 2009 Mack GU813 6x4 Flatbed Truck with Crane
Located
Nisku, AB, CAN
Nisku, AB, CAN
Usage
132,856 km (82,553 mi)
132,856 km (82,553 mi)
Serial number
1M2AX16C69M004403
1M2AX16C69M004403
Loading...
Detailed equipment information
A qualified Ritchie Bros. employee collected detailed equipment information and performed functional tests on the key components of this asset. You, or a proxy, may also inspect any items on site prior to bidding on auction day.
ID number
#15161318
In yard
No
Features
Mack MP8 6 Cylinder 12.8 L Diesel 338 hp Engine, 2008 US EPA Label, 5167 Engine hrs, Engine Brake, Eaton Fuller 18-Speed Manual Transmission, Differential Lock, 9100 kg Front Axle, 20800 kg Rears, 29900 kg GVWR, Air Ride Cab, Aluminum Wheels, 425/65R22.5 Front Tires, 11R22.5 Rear Tires, Dual Steering Boxes, Double Frame, Walking Beam Suspension, 255 in Wheelbase, PTO, Rear Mounted, 2 m - 10.6 m 4 Section Boom, Dual Controls, Out and Down Outriggers, Rear Outriggers, Remote Control w/Cord, 20 ft x 96 in Bed, Pintle Hitch, Hi-Rail System
General Appearance
Serial Number / VIN
1M2AX16C69M004403
Hour Meter / Odometer
132856 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, driver side headlight lights are not operational
Engine
Emissions Information
2008 US EPA Label
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
System will not build pressure, Audible air leaks after shut-down
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
After jump starting, the engine ran.
Cab
Engine Hours
5167 Engine hrs
Mirrors
Window Controls
Left Manual / Right Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Electric horn operational
Oil Pressure
The gauge registers in the operating range. 41 PSI
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Inoperable
Engine Brake
Operational
Clutch
Engages
PTO Control
Air engaged, Not operational
ECM Miles
Reader will not display ECM mileage
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Power Take Off
Air operated
PTO Pump
Not operationally checked
Frame Condition
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
Suspension Springs/Hangers
Suspension Bushings
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The brakes were not operationally checked
Configuration
Bed Body
Support Frame
Hinge Points
Valves
Hoses (Hydraulic)
Swing Motor
Not operationally checked
Boom Lift Cylinder(s)
Boom Extension Cylinder
Not operationally checked
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Turntable Bearing
Stabilizer Beams
Unable to see
Stabilizer Controls
Control Console
Hydraulic Controls
Remote Control
Not operationally checked
Limited Function Check
The hydraulic system could not be operationally checked.
