190 Photos

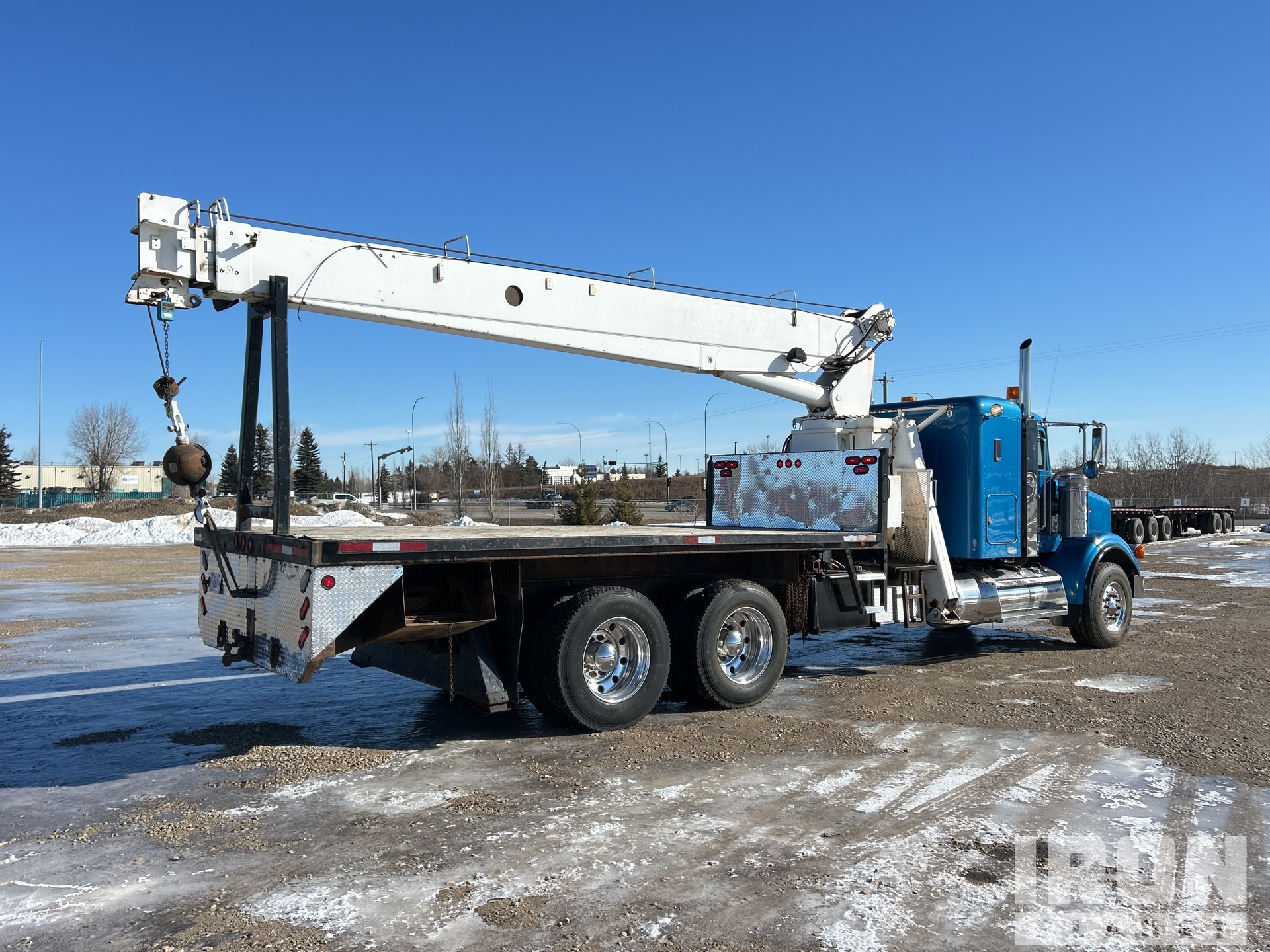

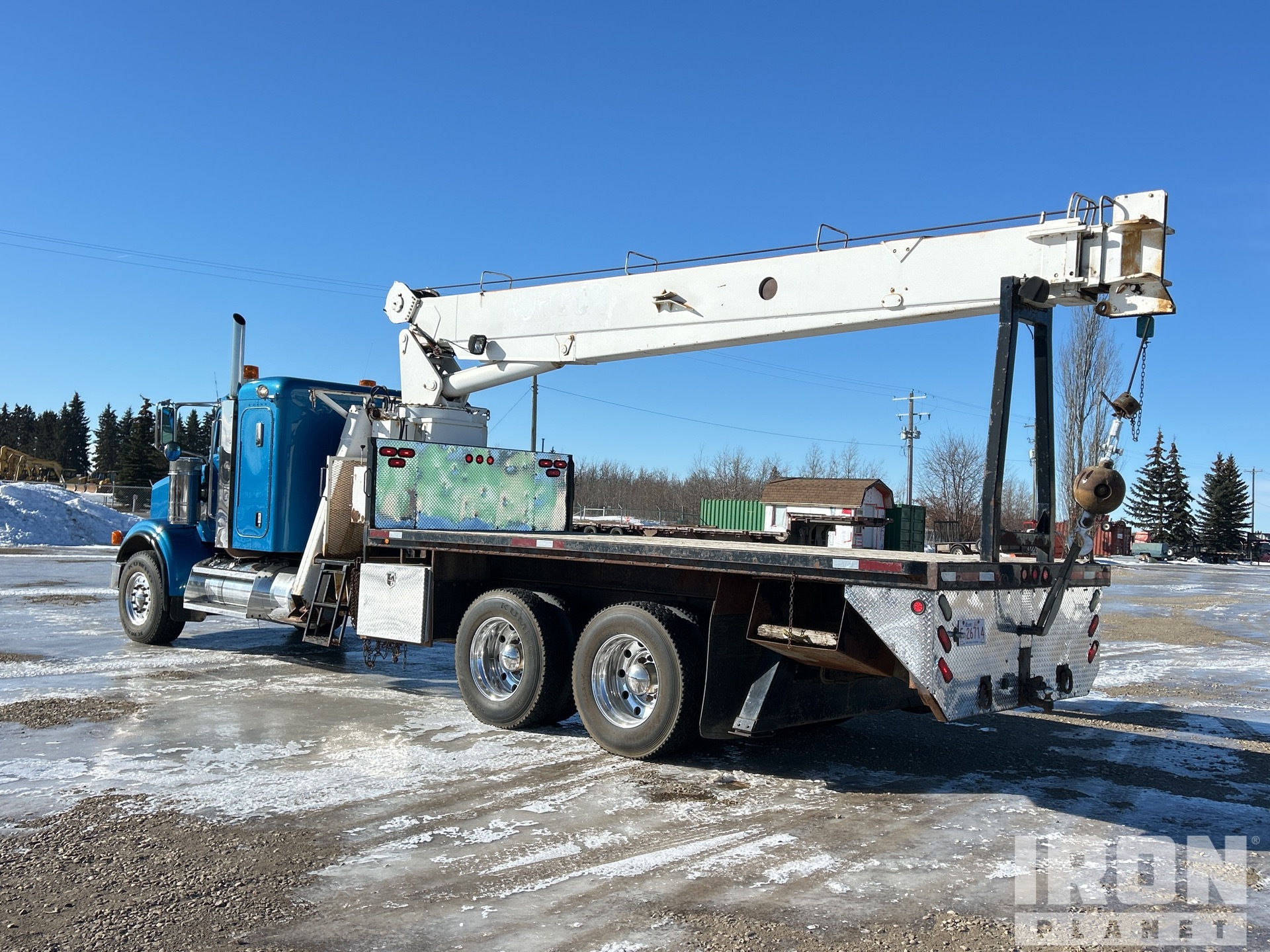

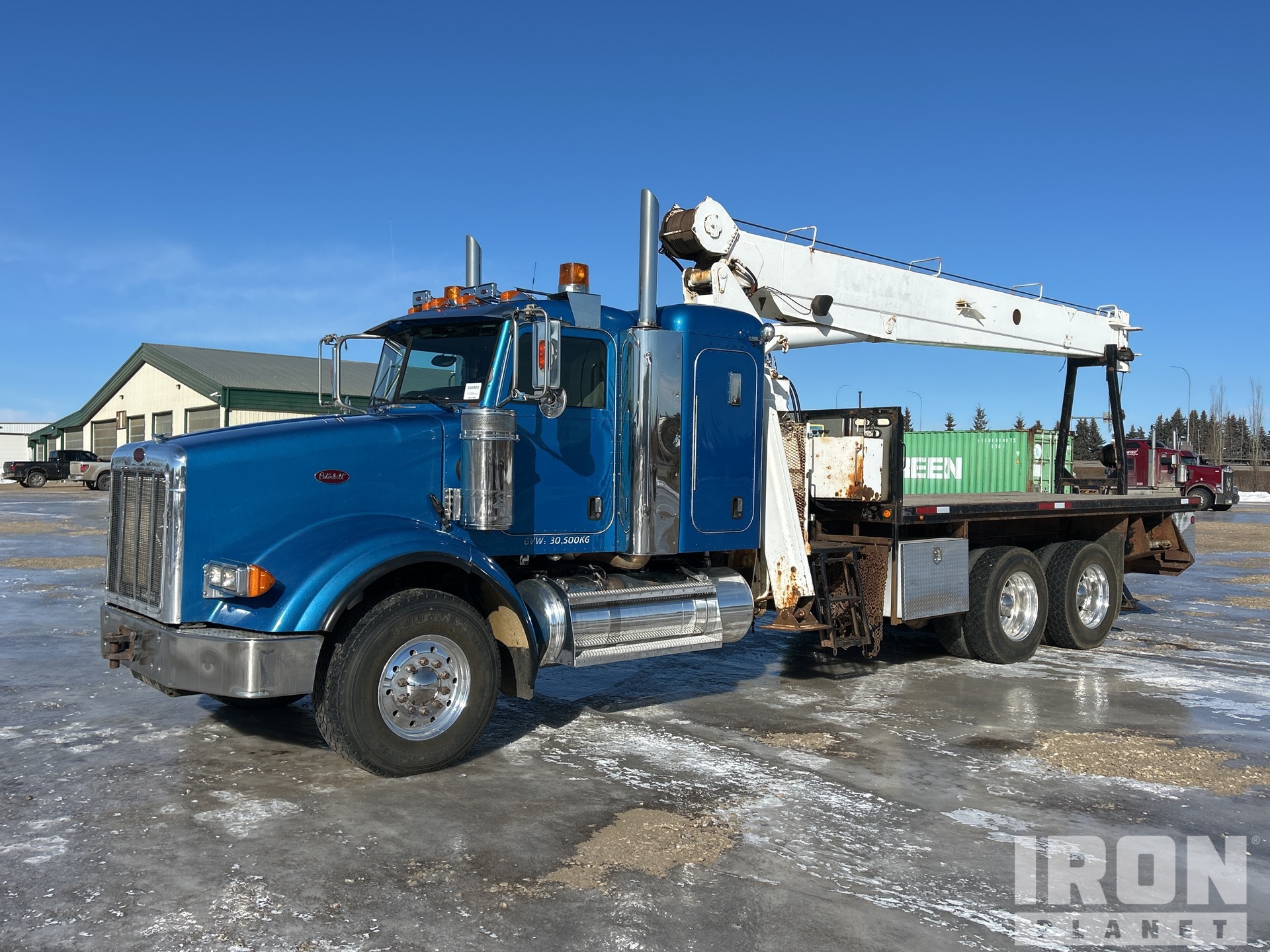

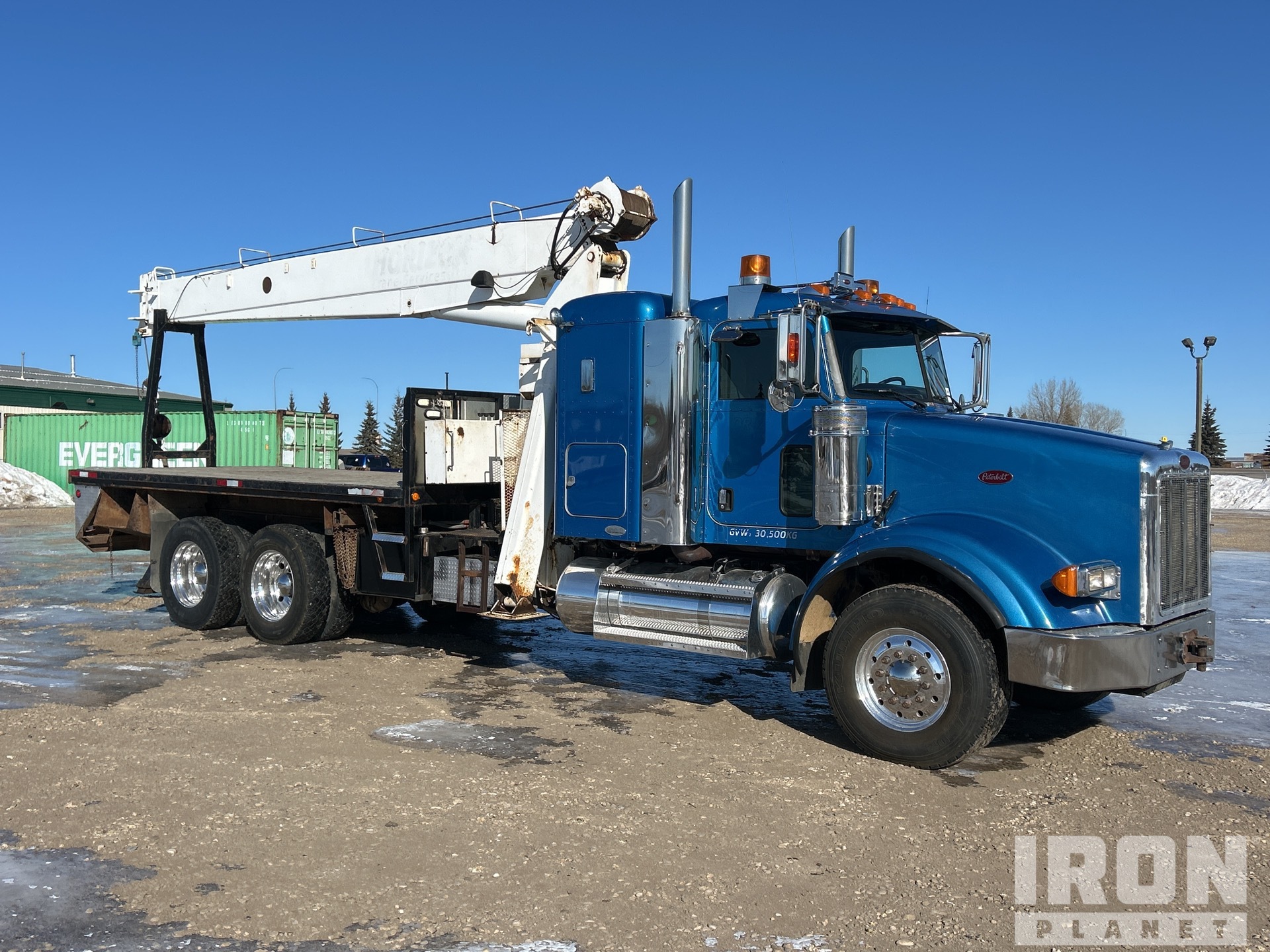

National 875 17 ton Straight Boom on 2005 Peterbilt 378 6x4 Sleeper Boom Truck
Located
Blackfalds, AB, CAN
Blackfalds, AB, CAN
Usage
413,103 km
413,103 km
Serial number
1NPFLB0X85D847996
1NPFLB0X85D847996
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14861250
In yard
No
Features
Cat C15 6 Cylinder Diesel 475 hp Engine, Engine Coolant Heater, Positive Air Shutoff, Eberspacher Engine Coolant Heater, 8770 Engine hrs, Air Conditioner, Cruise Control, Engine Brake, Eaton Fuller 18-Speed Manual Transmission, Double Differential Locks, 18740 lb Front Axle, 46000 lb Rears, 64740 lb GVWR, Air Ride Cab, Aluminum Wheels, 385/65R22.5 Front Tires, 11R24.5 Rear Tires, Dual Steering Boxes, Double Frame, Air Trac Air Ride Suspension, 270 in Wheelbase, PTO, 24 ft - 85 ft 4 Section Boom, 200 lb Ovrehaul Ball 7 ton Capacity Dual Controls, Wireless Anti-Two Block, Hydraulic Tool Circuit, A-Outriggers, Rear Outriggers, 18 ft x 102 in Bed, Pintle Hitch
General Appearance
Serial Number / VIN
1NPFLB0X85D847996
Hour Meter / Odometer
413103 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Some rock chips
Exterior Lights
Operational
Engine
Emissions Information
US EPA Label not legible
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Blow-by (subjective visual observation)
Visible
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine, Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Engine Hours
8770 Engine hrs
Mirrors
Window Controls
Left Manual / Right Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range. 40 PSI
Warning Lights
Operational
Gauges
Operational, Odometer doesn’t zero but does register speed gauges are inoperable
Gear Selector
Brake Control
Operational
Engine Brake
Not operationally checked
Clutch
Engages
PTO Control
Air engaged, Operational
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational, Some fan speeds inoperable
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Dripping leak from steering reservoir
Steer Axle
Transmission
Operational
PTO Pump
Operational, Dripping leak, Hyd. Oil Leak
Frame Condition
Front Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
Suspension Springs/Hangers
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Wet Kit Plumbing
Dripping leak
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Bed Body
Support Frame
Valves
Hoses (Hydraulic)
Hydraulic Leaks
Swing Motor
Boom Lift Cylinder(s)
Cylinder Seal Leaking
Boom Extension Cylinder
Could not visually inspect but is operational
Stabilizer Cylinders
Oil Leak On Right Side Front Cylinder
Boom Wear Guides
Boom Condition
Turntable Bearing
Stabilizer Beams
Stabilizer Controls
Control Console
Hydraulic Controls
Limited Function Check
The hydraulic system was operational.
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Mar 25, 2026 |
| Silicon | 0.32 PPM |
| Tin | 0.93 PPM |
| Silver | 0 PPM |
| Aluminum | 0.46 PPM |
| Chromium | 0.47 PPM |
| Lead | 0.93 PPM |
| Copper | 5.06 PPM |
| Nickel | 0.15 PPM |
| Iron | 6.48 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
