265 Photos

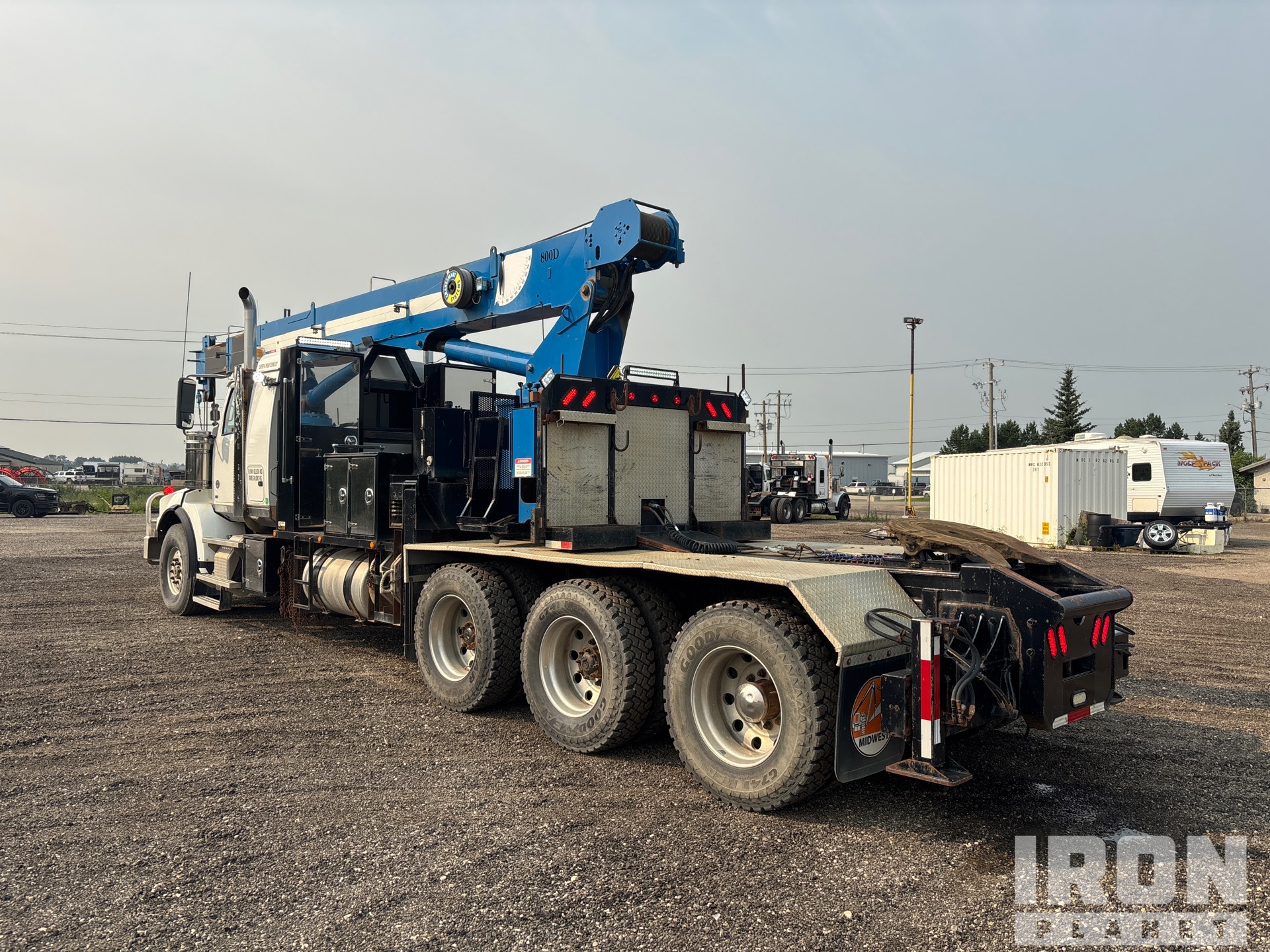

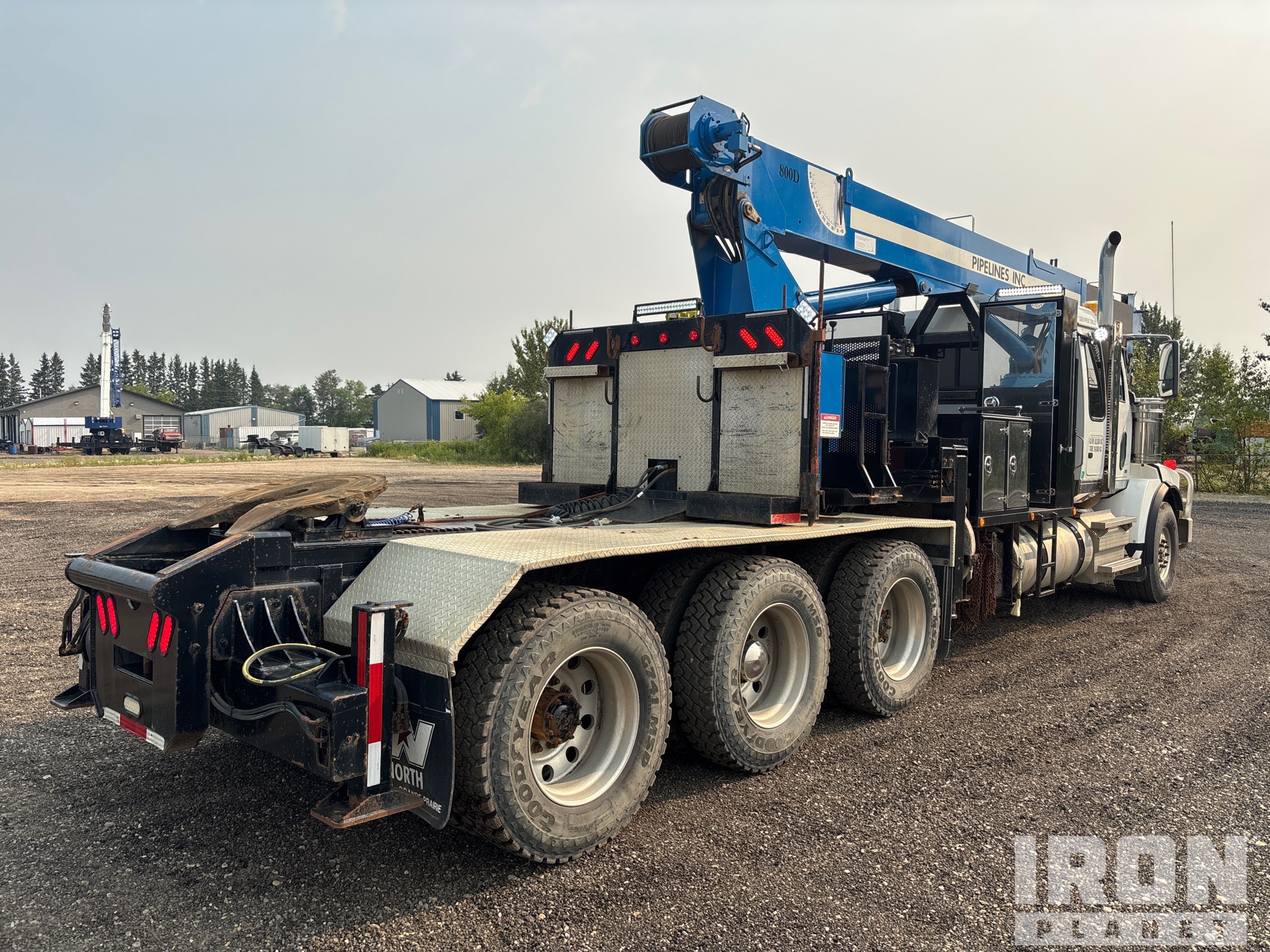

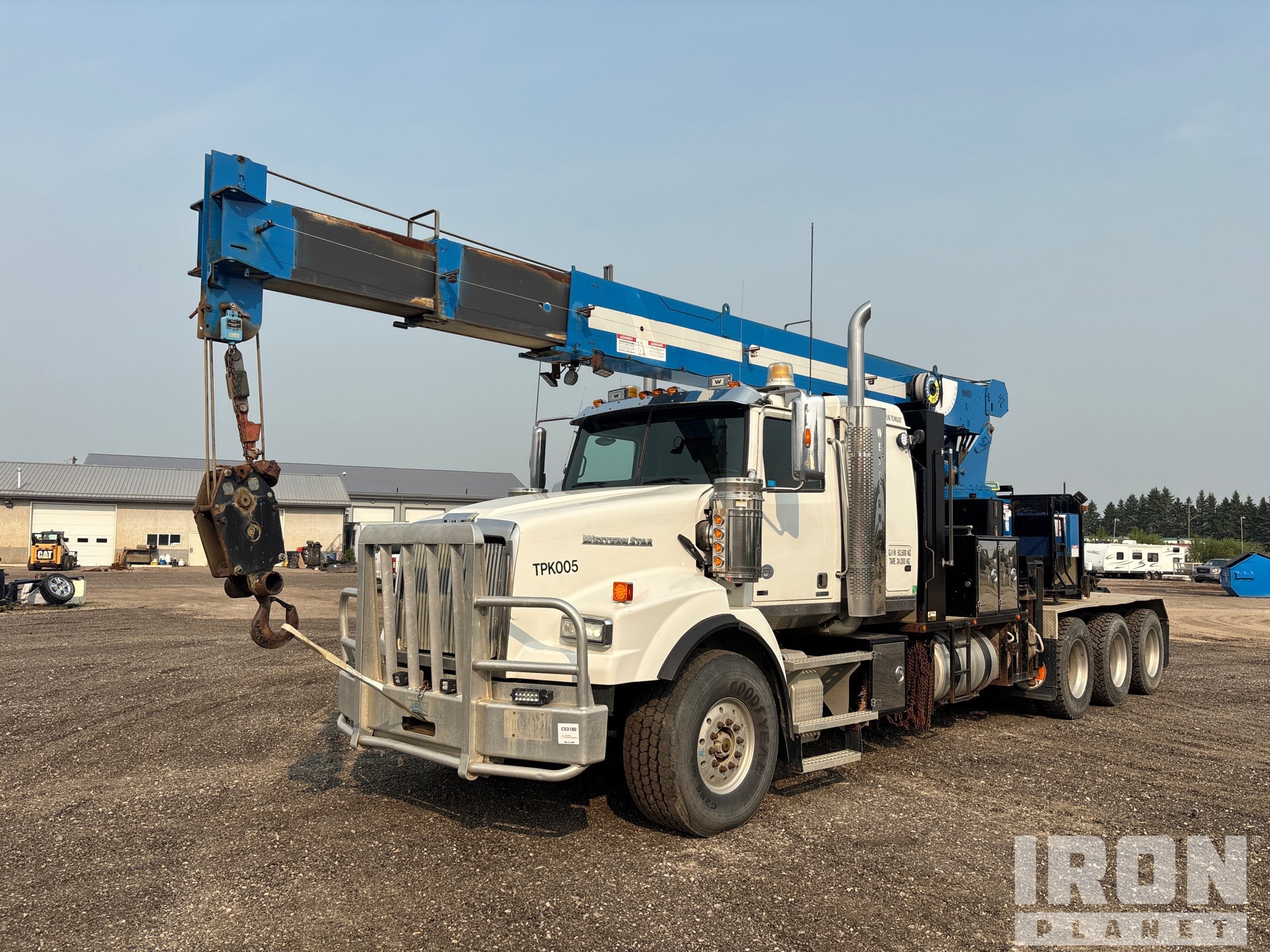

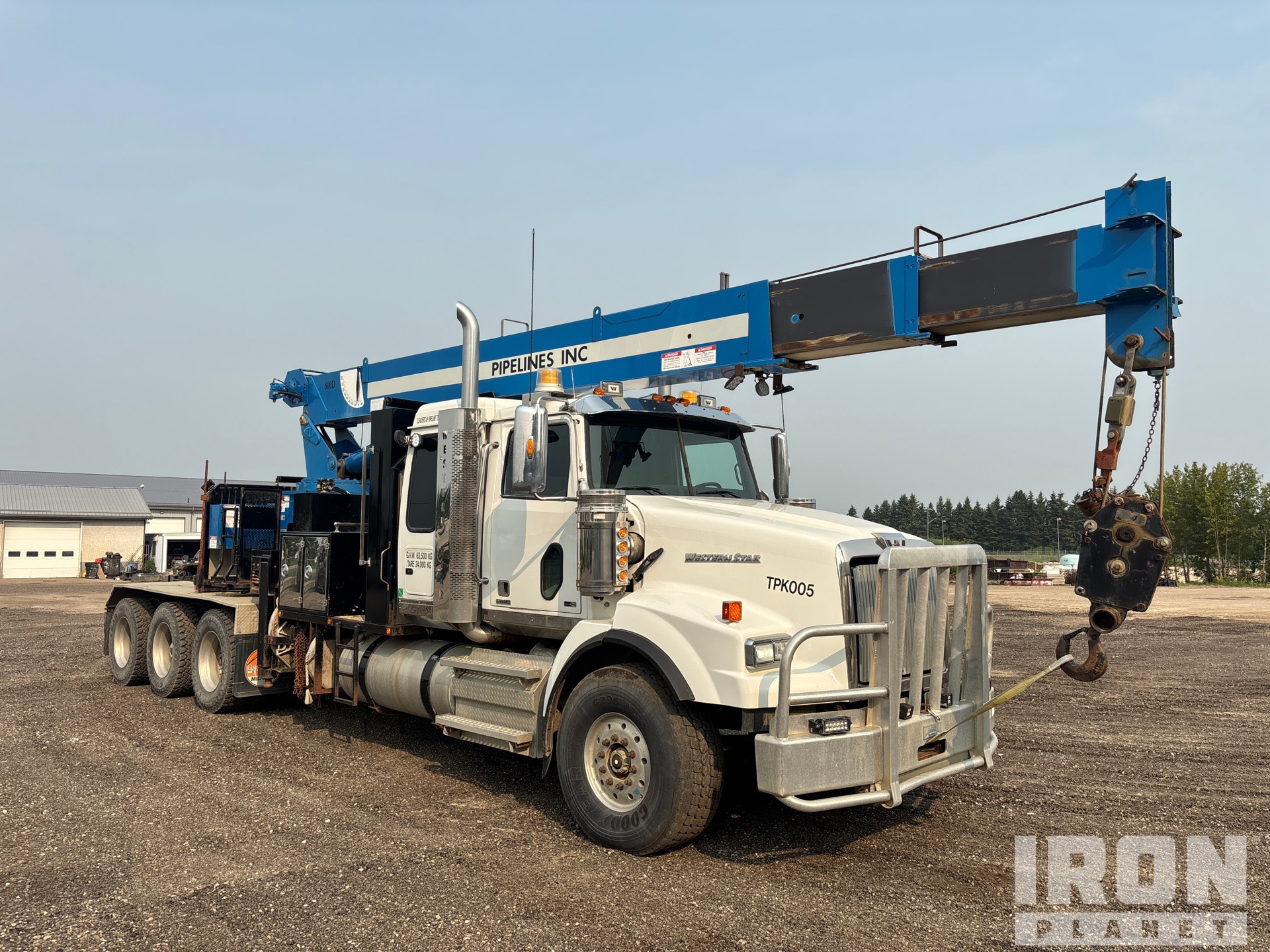

National 800DU 23 ton Straight Boom on 2014 Western Star 4900SA 8x6 Sleeper Boom Truck
Located
Spruce Grove, AB, CAN
Spruce Grove, AB, CAN
Usage
152,958 km
152,958 km
Serial number
5KKPALD18EPFP6306
5KKPALD18EPFP6306
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#15518089
In yard
No
Features
Detroit DD16 6 Cylinder 15.6 L Diesel 600 hp Engine, 2013 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, Engine Coolant Heater, Positive Air Shutoff, Webasto Engine Coolant Heater, 7676.7 Engine hrs, Air Conditioner, Cruise Control, Power Windows, Engine Brake, Eaton Fuller RTLO-18918B 18-Speed Manual Transmission, Triple Differential Locks, 20000 lb Front Axle, 57000 lb Rears, Meritor RZ-166 Drive Axles, 4.30:1 Axle Ratio, 77000 lb GVWR, Air Ride Cab, Aluminum Wheels, 445/65R22.5 Front Tires, 11R24.5 Rear Tires, Dual Steering Boxes, Double Frame, Airliner Air Ride Suspension, 300 in Wheelbase, PTO, 24 ft - 60 ft 3 Section Boom, Johnson 338 lb 2 Sheave 20 ton Capacity Hook Block w/ 0.562 in Wire Rope,, Dual Controls, Cranesmart Load Moment Indicator, Wireless Anti-Two Block, Out and Down Outriggers, Rear Outriggers, 6 ft x 94 in Bed, Air Sliding 5th Wheel
General Appearance
Serial Number / VIN
5KKPALD18EPFP6306
Frame Stamp Serial Number/VIN Photo
Hour Meter / Odometer
152958 km-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Some not operational, Rear facing light bars flicker on and off, front facing light bars come on with brights lights are not operational
Engine
Emissions Information
2013 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid
Emission Label
A/C Compressor
Operational
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Diesel Particulate Filter
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check
The engine started and ran.
Cab
Engine Hours
7676.7 Engine hrs
Mirrors
Window Controls
Both Power
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Air horn operational, Electric horn operational
Oil Pressure
The gauge registers in the operating range.
Warning Lights
Operational
Gauges
Operational
Gear Selector
Brake Control
Operational
Engine Brake
Operational
Clutch
Engages, No free travel
PTO Control
Air engaged, Operational
ECM Miles
90736.9 ECM mi
Air Conditioner
Operational
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Steering Components
Steer Axle
Transmission
Operational
Power Take Off
Operational, Air operated
PTO Pump
Operational
Frame Condition
Front Drive Axle
Center Drive Axle
Rear Drive Axle
Limited Function Check
The drivetrain was operational without a load.
Cab Suspension Air Bags
Suspension Springs/Hangers
Rusty
Suspension Bushings
Suspension Air Bags
Left Steer Tire
Left Front Drive Tires
Left Center Drive Tires
Left Rear Drive Tires
Right Rear Drive Tires
Right Center Drive Tires
Right Front Drive Tires
Right Steer Tire
Wheel Condition
Wheel Studs
Hydraulic Tank
Limited Function Check - Brakes
The service brakes are operational, The park brake is operational.
Configuration
Bed Body
Support Frame
Hinge Points
Valves
Hoses (Hydraulic)
Some fittings are extremely rusted, 1 cracked but not leaking
Swing Motor
Heavily saturated
Boom Lift Cylinder(s)
Boom Extension Cylinder
Stabilizer Cylinders
Boom Wear Guides
Boom Condition
Extension Chains/sprockets
Turntable Bearing
Stabilizer Beams
Lock on one outrigger plate missing
Stabilizer Controls
Control Console
Hydraulic Controls
Safety Lock Out/Stop
Operational
Gauges
Operational
Limited Function Check
The hydraulic system was operational.
Oil Sample Analysis
Oil Sample Analysis
| engine | |
|---|---|
| date of analysis | Jul 30, 2026 |
| Silicon | 34.43 PPM |
| Tin | 1 PPM |
| Silver | 0 PPM |
| Aluminum | 4.51 PPM |
| Chromium | 0.53 PPM |
| Lead | 0.15 PPM |
| Copper | 10.2 PPM |
| Nickel | 0.54 PPM |
| Iron | 162.93 PPM |
| Glycol | NEG |
| Water | NEG |
| Fuel | <5% |
