80 Photos
2018 Kleemann EVO2 Impact Crusher
Located
Snellville, GA
Snellville, GA
Usage
8,727 hrs
8,727 hrs
Serial number
K0190051
K0190051
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#13966889
In yard
No
Features
Scalia 6 Cylinder Diesel Engine, 3 ft 4 in x 6 ft 8 in Vibratory Pan Feeder w/Hydraulic Fold Hopper Wings, Kleemann 42 in Impact Crusher, 331 kW Drive Motor, 15 ft x 4 ft 4 in Single Deck Screen, 39 in Wide Fines Discharge Conveyor, 48 in Wide Under Crusher Conveyor, 39 in Wide Under Screen Conveyor, 19 in Wide Left Discharge Conveyor, 39 in Wide End Discharge Conveyor, 32 in x 8 ft Cross Belt Magnet, Radio and Cable Remote Control, 16 in Triple Grouser Track Shoes

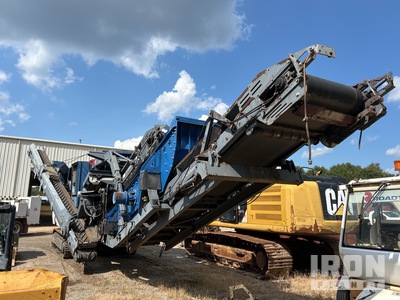

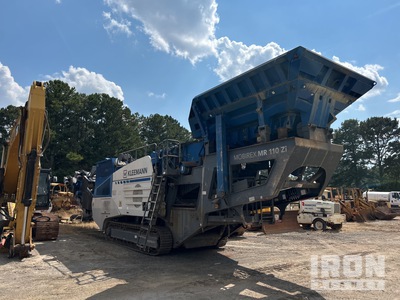

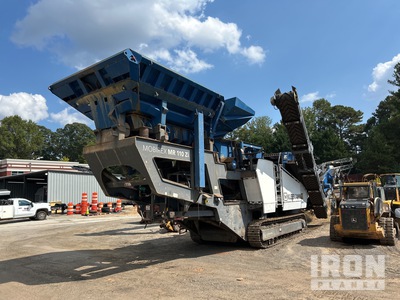

General Appearance

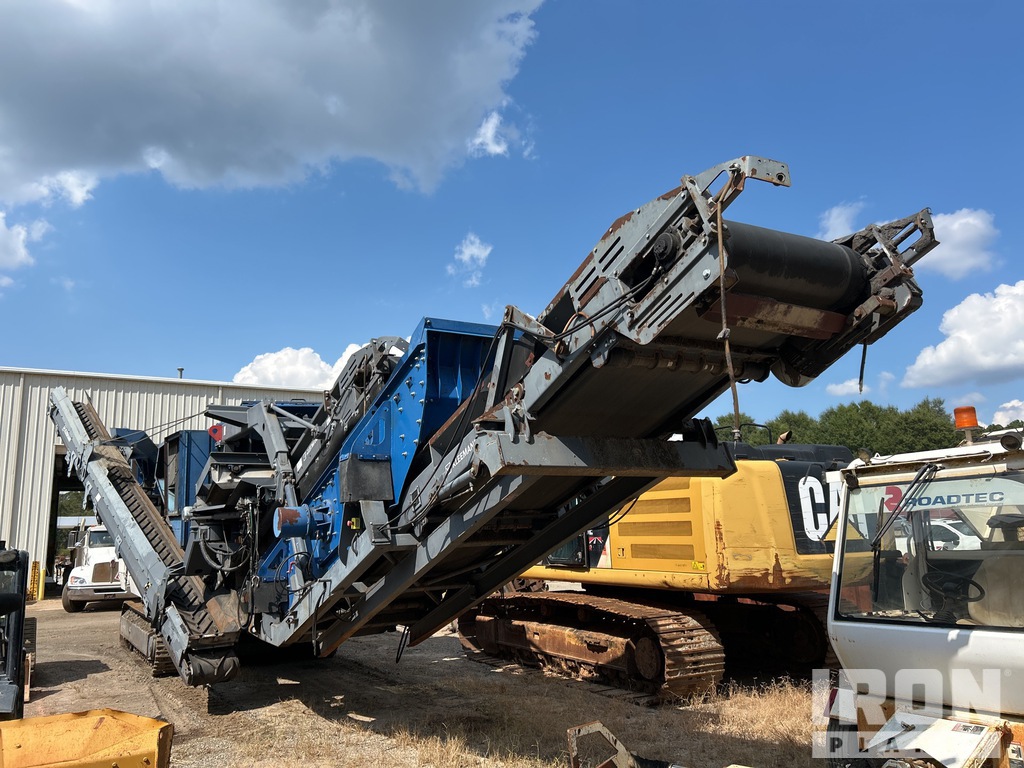

Featured Photo
Serial Number / VIN
K0190051
Hour Meter / Odometer
8727 hrs-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Control Station
Gauges
Operational
Engine Controls
Crusher/Screen Controls
Limited Function Check
The main components are in place and operational as noted.
Electrical
Electric Motors
Manufacture brand Nord, Operational
Switch Gear
Manufacturer Brand- TRIPS, Fixed
Disconnect Switch
Functional
Cables and Connections
Engine
Emission Certification Label
Not legible
Blow by @ idle (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
No dripping leaks
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
DEF / AdBlue Tank
Limited Function Check (Engine)
The engine started and ran.
Hydraulics
Pumps (Hydraulics)
Valves
Hydraulic Tank
Hoses
Crusher Door Cylinders
Conveyor Cylinders
Power Travel Drive System
1 Travel Speed, Travels properly
Limited Function Check
The hydraulic system was operational.
Chassis
Feed Hopper
Length @ top: 174”, Width @ top: 108”
Crusher Base Frame
Crusher Chamber Frame
Jaw, Blow Bar and Anvil Wear Surface
Crusher Drive System
VSI / HSI Crusher Chamber
Discharge Conveyor Condition
Discharge Conveyor Drive Motor
Operational
Discharge Conveyor Rollers
Discharge Conveyor Head and Tail Pulley
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Grouser Height
25 mm
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Grouser Height
25 mm
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Oil Sample Analysis
Oil Sample Analysis
| engine | hydraulic | |
|---|---|---|
| date of analysis | Sep 29, 2025 | Sep 29, 2025 |
| Silicon | 4.39 PPM | 1.39 PPM |
| Tin | 0.39 PPM | 0 PPM |
| Silver | 0 PPM | 0 PPM |
| Aluminum | 3.83 PPM | 0.09 PPM |
| Chromium | 0.76 PPM | 0.16 PPM |
| Lead | 1.77 PPM | 0.64 PPM |
| Copper | 0.86 PPM | 1.04 PPM |
| Nickel | 0.41 PPM | 0.19 PPM |
| Iron | 13.23 PPM | 0.81 PPM |
| Glycol | NEG | N/A |
| Water | NEG | N/A |
| Fuel | <5% | <5% |
