182 Photos

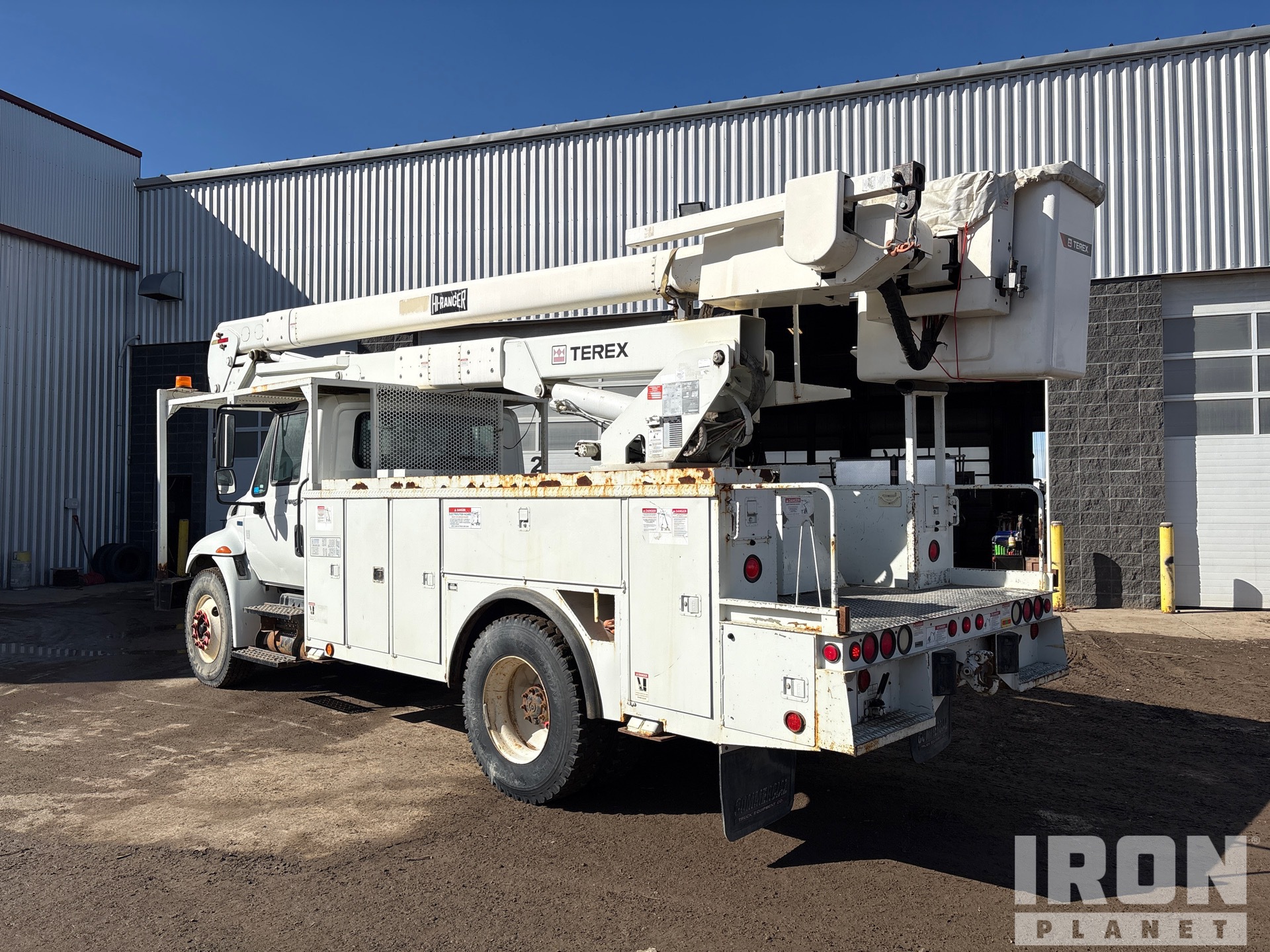

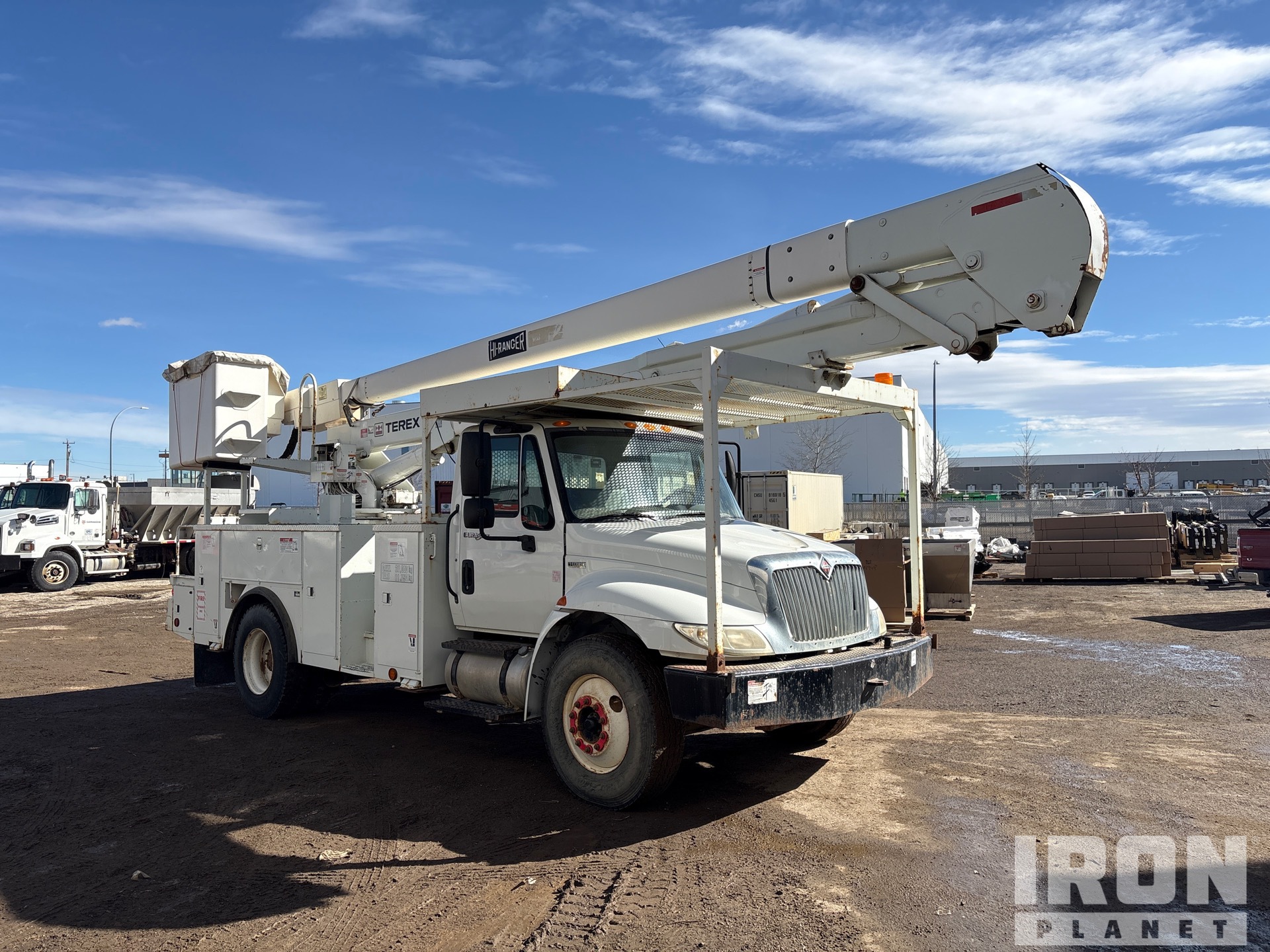

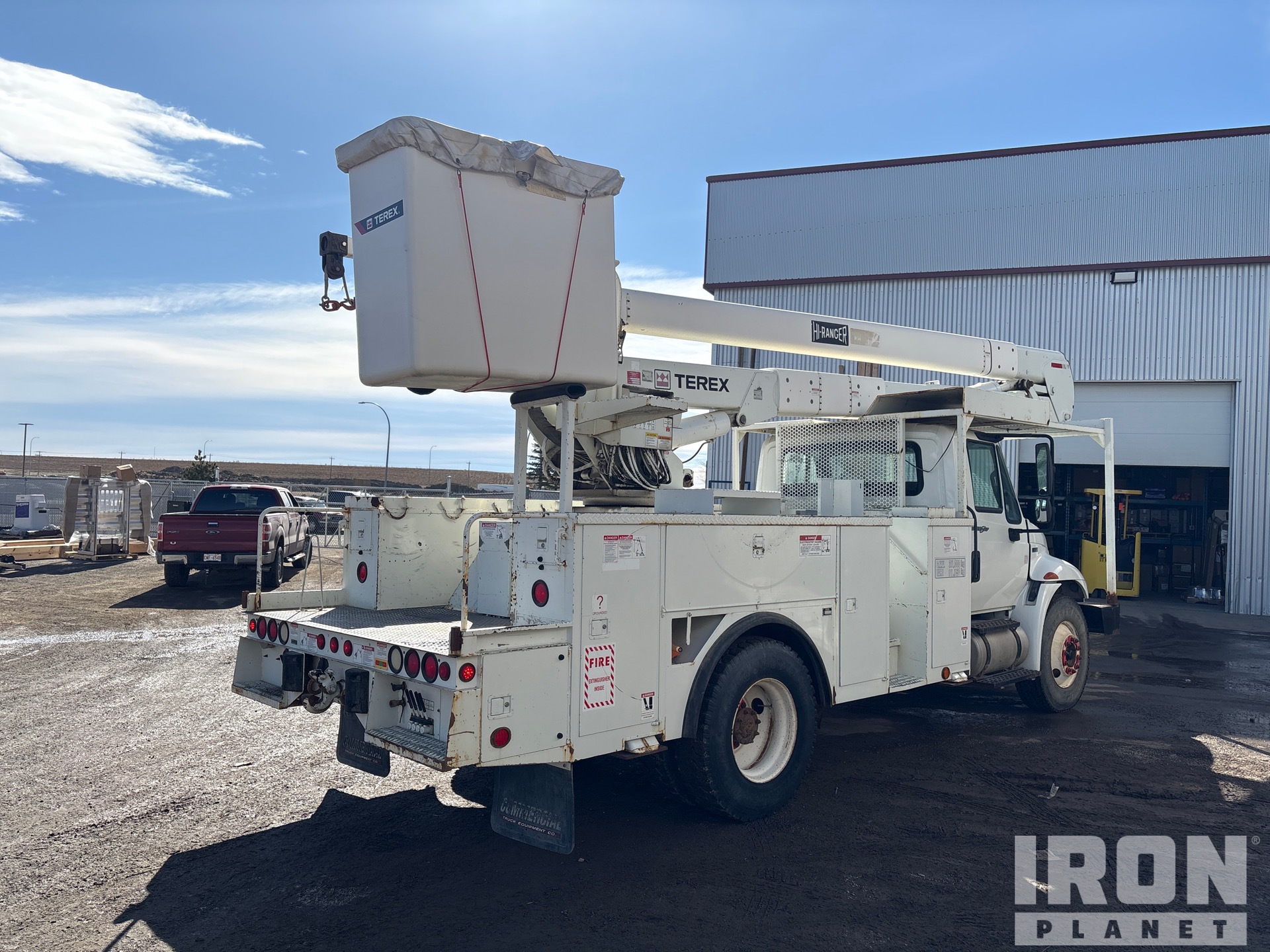

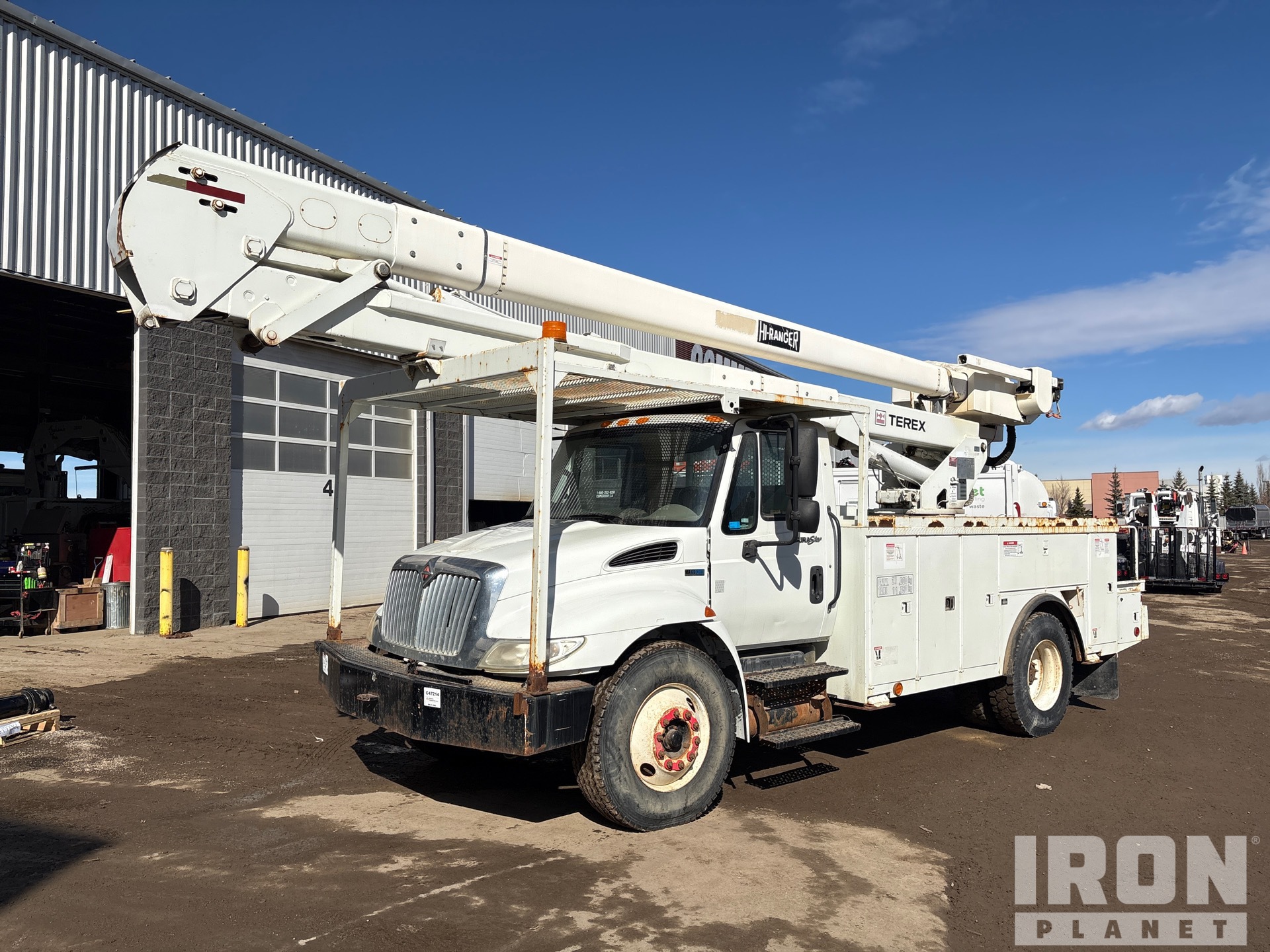

2011 Terex HI-Ranger 5TC-55 55 ft on 2012 International 4300 SBA DuraStar 4x2 Cable Placer Bucket Truck
Located
Calgary, AB, CAN
Calgary, AB, CAN
Usage
98,483 km
98,483 km
Serial number
3HAMMAAN8CL439116
3HAMMAAN8CL439116
Loading...
Detailed equipment information
Protected by IronClad Assurance
This lot has been given an extensive inspection by an industry expert. If you find it's not as described, file a dispute and we'll make it right.
ID number
#14801497
In yard
No
Features
6 Cylinder 7.6 L Diesel 245 hp Engine, 2011 US EPA Label, 8634 Engine hrs, Air Conditioner, Cruise Control, Eaton Fuller 6-Speed Manual Transmission, Differential Lock, 12000 lb Front Axle, 21000 lb Rears, 33000 lb GVWR, 11R22.5, Spring Suspension, 169 in Wheelbase, PTO, 500 lb Capacity, Center Mounted, Insulated Two-Person Articulated Boom, Lower Boom Fiberglass Insert, Utility Body, Boom Tip Mounted Winch, A-Outriggers, Rear Outriggers, 15 ft x 94 in Bed, Pintle Hitch
Supporting documents

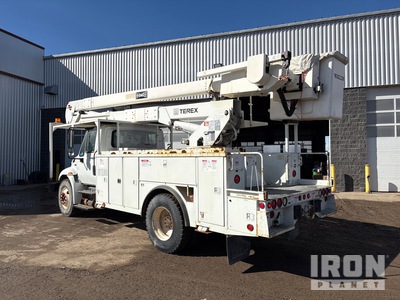

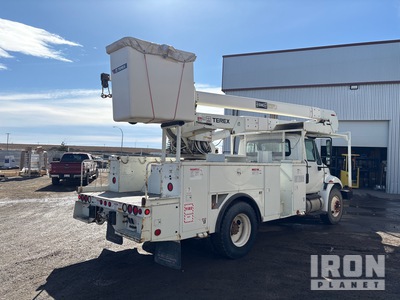

General Appearance
Serial Number / VIN
3HAMMAAN8CL439116
Second Serial Number/VIN Photo
Hour Meter / Odometer
98483 km, Odometer functions, not enough room to drive to change km.-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Motor Vehicle Safety Standards Label
Yes
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Exterior Lights
Operational, Some not operational, Right rear outer red flasher not working. lights are not operational
Engine
Emissions Information
2011 US EPA Label
Emission Label
A/C Compressor
In place; ambient temperature too cold to check operation
Starter
Operational
Air Compressor
Operational
Fuel System
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine, Oil Pan
Fuel Leaks
No dripping leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Cab
Engine Hours
8634 Engine hrs
Mirrors
Window Controls
Both Manual
Seats/armrests
Seat Belts
Operational
Steering Control
Horn
Electric horn operational
Oil Pressure
The gauge registers in the operating range. 50 PSI
Warning Lights
Operational, Check engine light stays on, Low coolant light stays on, Low coolant like came up and stays on, along with engine light. light stays on
Gauges
Operational
Gear Selector
Brake Control
Operational
Clutch
Engages
PTO Control
Cable engaged, Operational
ECM Miles
Unable to get ECM reading
Air Conditioner
The ambient temperature is too cold to check.
Heater
Operational
Limited Function Check
The main components are in place and operational as noted.
Underbody
Transmission
Operational
Drive Shaft
Power Take Off
Operational
Steer Axle
Front Drive Axle
Limited Function Check
The drivetrain was operational.
Hydraulics
Valves
Hydraulic Tank
Hoses (Hydraulic)
Boom Lift Cylinder
Secondary Boom Cylinder
Stabilizer Cylinders
Can’t access for pictures.
Limited Function Check
The hydraulic system was operational.
Configuration
Bed Body
Support Frame
Limited Function Check
The main chassis components were operational in a limited check.
Tool / Work Box
Steering Linkage
Brake Type
Air brakes
Brake Lines/Hoses
Not operationally checked
Park Brake
Held against power
Limited Function Check - Brakes
The brake system functioned, stopping and holding the machine.
Springs/Hangers Condition
Suspension Bushings
External Electrical / Air Connections
Not operationally checked
Frame Condition
Wheel Condition
Wheel Studs
Dielectric Certification
There is a Dielectric Certification label with an expiration date of February, 2025
Turntable Bearing
Boom Condition
Boom Wear Guides
Work Bucket
Hydraulic Controls
