102 Photos

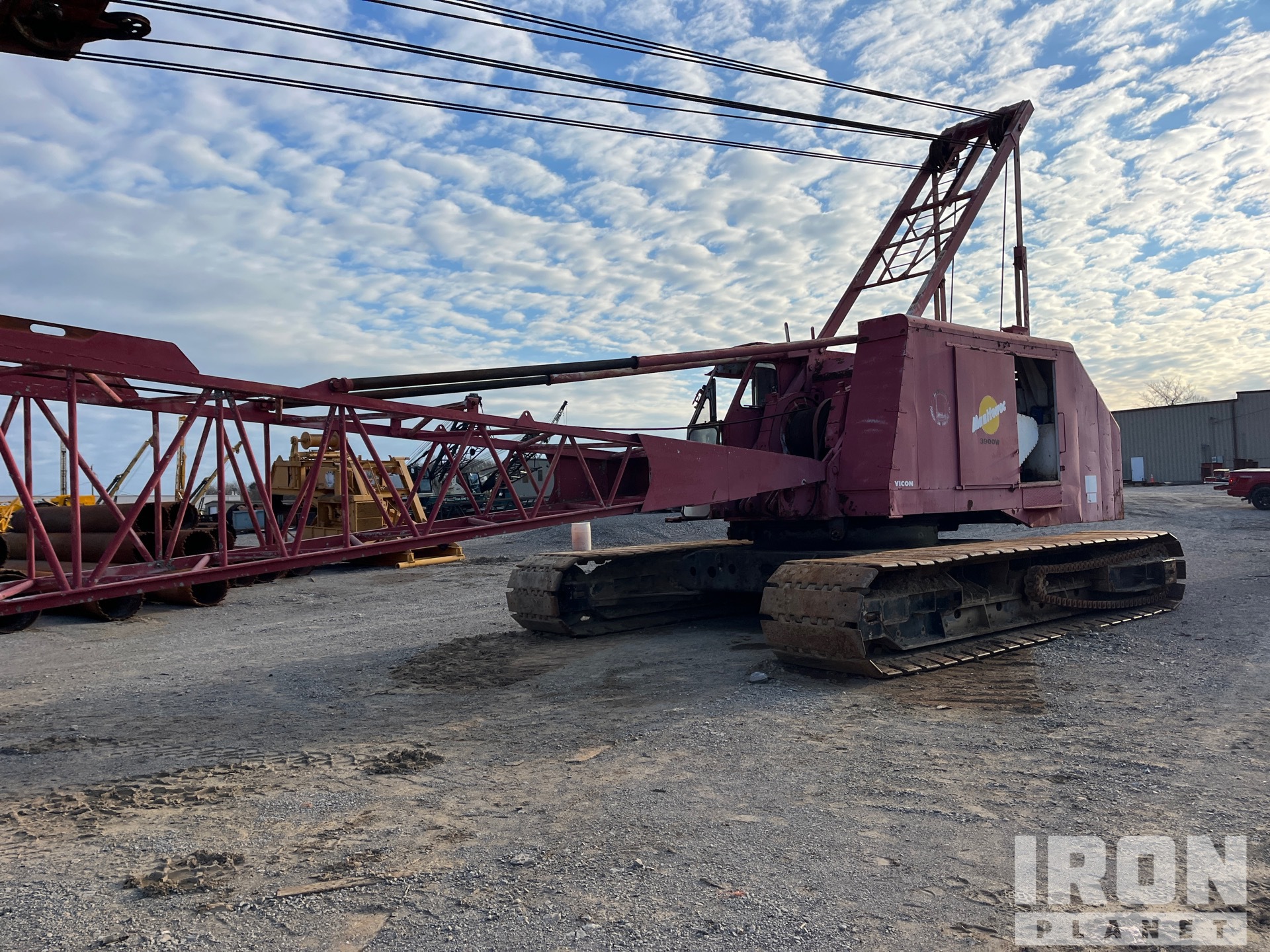

1991 Manitowoc 3900-W Lattice-Boom Crawler Crane
Located
Hermitage, TN
Serial number
395078
Loading...
Detailed equipment information
An inspection report will be available soon. Please check back later.
ID number
#14627402
In yard
No
Year
1991
Manufacturer
Model
Asset type
Serial number or VIN
395078
Features
Tier 2, 145 ft Boom, Johnson 1790 lb 3 Sheave 75 ton Hook Block, 47 in Smooth Track Shoes
Notes
COMES WITH IRONCLAD ASSURANCE. SUBJECT TO TENNESSEE SALES TAX.
General Appearance
Featured Photo
Picture, Left Front Corner
Picture, Left Rear Corner
Picture, Right Rear Corner
Picture, Right Front Corner
Serial Number / VIN
395078
Hour Meter / Odometer
Meter reading could not be obtained, Unable to locate a meter-No guarantees made as to actual hours/miles/kilometers; the inspection report reflects what can be visually observed.
Paint
Sheet Metal (fiberglass) Condition
Steps/Ladders
Hand Rails
Glass
Safety Certification Label
There is a safety certification label with a date of 08-2000, Safety Certification Label not legible.
Safety Certification Report
Safety Certification Report Not Available
Load Chart
No
Safety
Travel Alarm
Missing
Horn
Missing
Seat Belts
Not equipped
Safety Lock Out/Stop
Operational
Current Safety Manual
Current Operator/Maintenance Manual
Control Station - Upper
Mirrors
Glass
Roof damaged
Seats/Armrests
Controls Hydraulic or Air
Load Charts
None found
Oil Pressure
The gauge registers in the operating range. Gauge inoperable
Gauges
Some gauge ms are inoperable
Hoist Brakes
Heater
The fan is inoperable
Limited Function Check
The main components are in place and operational as noted.
Engine
Engine
No US EPA Label Present
Blow-by (subjective visual observation)
No noticeable vapor or pressure
Starter
Operational
Exhaust System
Radiator
Oil Leaks
Side of engine
Fuel Leaks
Cooling System Leaks
No dripping leaks
Engine - Left Side
Engine - Right Side
Limited Function Check
The engine started and ran.
Drivetrain
Steering Clutches (Crane)
Unable to visualize
Steering Brakes
Service Brakes
Limited Function Check (Drivetrain-Crawler Crane)
The drivetrain functioned properly without a load.
Hydraulics
Swing Motor
Main Hoist
Auxiliary Hoist
Limited Function Check
The hydraulic system was operational.
Crane Superstructure
Hoist Drums
Mechanical Draw Works
Boom Drums
Mechanical Draw Works, Unable to visualize
Hoist and Boom Clutches
Unable to visualize
Main Boom Pins
Pendant Line (Boom Tension Line)
Cable Type
Point Sheaves
Boom Point Section
Boom Length
140 ft overall length, 4 Sections, 34 ft Length, 40 ft base section, 40-30
Boom Angle Indicator
Turntable Bearing
Bottom Covers
Swing Drive
Operational
Limited Function Check
The main chassis components functioned when checked without a load.
Undercarriage
Left Roller Frame
Left Track Tensioner
Left Track Pads
Left Track Links
Left Track Bushings
Bushings have not been turned
Left Track Rollers
Left Idler
Left Sprocket
Right Roller Frame
Right Track Tensioner
Right Track Pads
Right Track Links
Right Track Bushings
Bushings have not been turned
Right Track Rollers
Right Idler
Right Sprocket
Specialty
Main Load Block
Counterweights
